Bring Your Own OAuth Client

You can use multiple custom OAuth clients for the same integration. Set one client for your entire workspace and assign additional clients to specific user groups. This lets different groups use the same integration with different OAuth clients.

How Custom OAuth Works

When you configure a custom OAuth client, Langdock routes new authentication flows through the OAuth application assigned to each user instead of the default Langdock client. A client for the entire workspace applies by default, while group clients apply to members of the assigned groups. This means:

Your branding (custom name and logo) appears in consent screens
Your tenant policies control user access and admin consent requirements
Your rate limits apply to API calls made by your users
Your user groups can authenticate through separate OAuth clients

Create OAuth App at Provider

Register a new OAuth application in your provider’s developer portal (Google Cloud Console, Microsoft Azure, etc.).Required Configuration:

Copy the exact redirect URL from Langdock’s integration settings
Select all required scopes shown in Langdock for that integration
Configure any tenant-specific settings (admin consent, allowlisting)

Gather Credentials

Note down the following from your OAuth app:

Client ID (always required)
Client secret (required for most integrations)
Tenant ID (optional, shown for Microsoft integrations only)

Configure in Langdock

Go to Workspace settings → Integrations, select the integration, and scroll to Bring your own OAuth Client.Click Add another OAuth client when the integration includes a Langdock client. If the integration requires your own client, click Configure your OAuth client to use this integration.In the configuration dialog, copy the Redirect URL into your OAuth app and review the Scopes section. Make sure all listed scopes are enabled in your OAuth app — missing scopes will cause an insufficient scopes error. You can copy all scopes at once using the copy button.For integrations with action-level permissions, we recommend keeping Sync scopes with enabled actions turned on by default. Langdock then requests the auth scopes plus the scopes required by enabled or shared actions, keeping requested scopes aligned with the actions your workspace can use. Learn more in Manage Action-Level Scopes.Optionally add a descriptive Client name. Under Access, choose Entire workspace or Groups. Enter your Client ID and Client secret (and Tenant ID if prompted for Microsoft integrations), then click Save and confirm the change.Select the saved client from the client list and confirm the switch to activate it.

Once active, new connections for users with access to this client use it immediately and only work if the credentials are valid. Existing connections remain linked to the client they were created with.

Test Authentication

Have a user connect their account to verify:

Consent screen shows your client
Required scopes are granted
Data access works as expected through actions

Assign OAuth Clients to User Groups

Use group access when different parts of your organization need separate OAuth applications for the same integration. For example, assign one client to a subsidiary with its own Microsoft Entra tenant, or use a separate client when a department needs a different approved scope set. The client for your entire workspace remains the default for everyone who is not covered by a group client.

Add another custom client

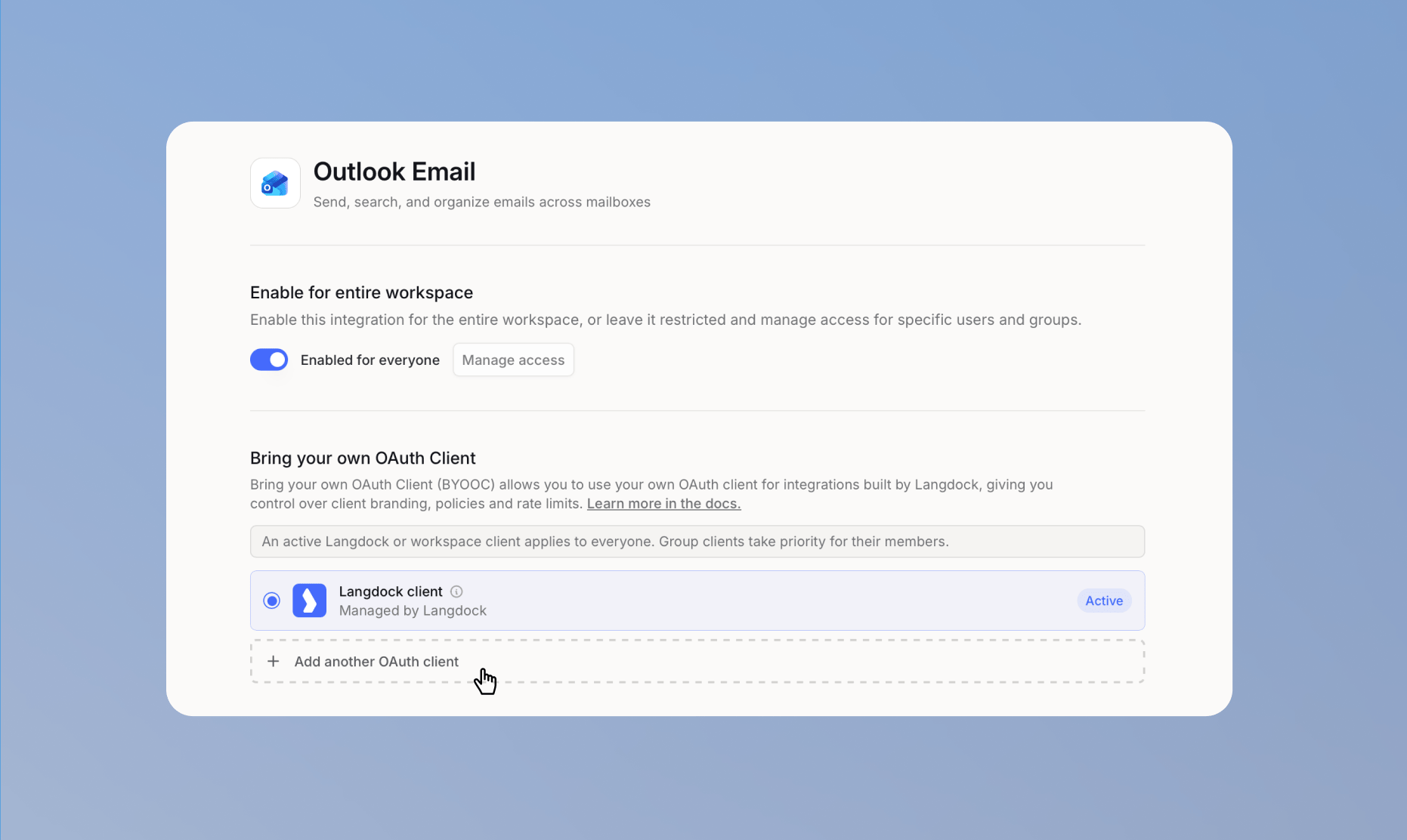

Outlook Email integration settings with Add another OAuth client selected

Click Add another OAuth client. Optionally give the client a descriptive name so you can identify it in the client list.

Manage client access

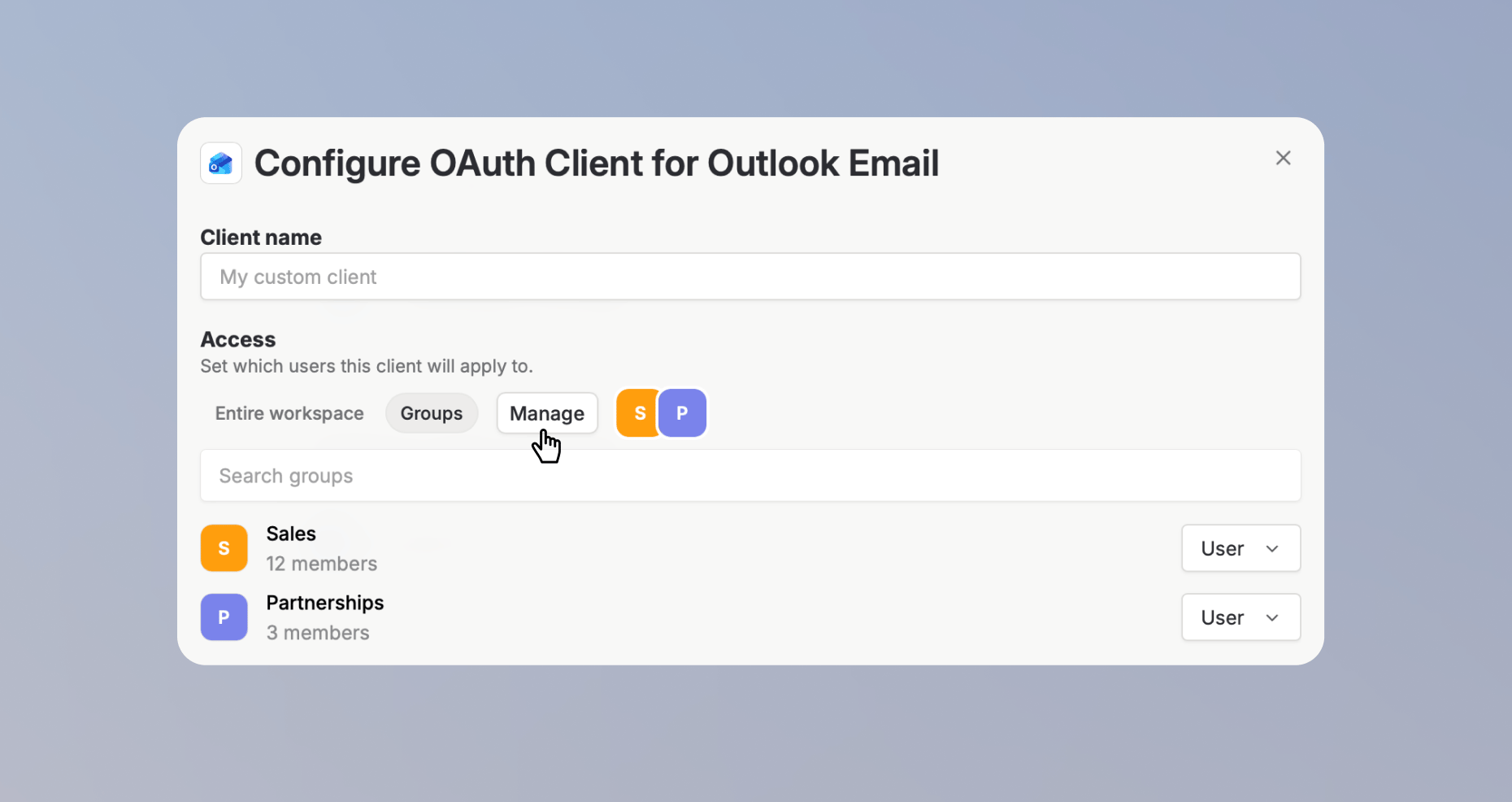

OAuth client access settings with user groups selected

In the Access section, select Groups, then click Manage to choose the user group that should use this client.

Add credentials

Enter the Client ID, Client secret, and any fields required by the provider. Click Save and confirm the change. Select the saved client from the client list and confirm the switch to activate it.

Keep a client active for the entire workspace if users without a group client need to connect. A user cannot belong to groups assigned to two active OAuth clients for the same integration.

Integration Settings Interface

The configuration dialog contains the following sections:

Redirect URL
Scopes
Credentials

A read-only field displaying the redirect URL your OAuth app must use. Click the copy button to copy it exactly. The URL format is:

https://app.langdock.com/api/integrations/{integration-id}/callback

The redirect URL must match exactly. Any mismatch will cause redirect_uri_mismatch errors. The exact domain depends on your Langdock deployment — always copy the redirect URL from the dialog rather than constructing it manually.

Displays the OAuth scopes required for the integration to function correctly. For example, Jira requires scopes like read:jira-work, write:jira-work, read:jira-user, offline_access, and manage:jira-configuration.

Copy: Copy all scopes to your clipboard for pasting into your OAuth app configuration.
Edit: Switch to edit mode to customize scopes in a text area (advanced use cases only).
Reset to default scopes: Restore the original scope list if you have modified it.

For integrations with action-level permissions, keep Sync scopes with enabled actions turned on unless you intentionally want to manage a fixed scope list yourself. This is the recommended default because Langdock can keep OAuth scopes in sync with enabled and shared actions.

All listed scopes must be enabled in your OAuth app. Missing scopes will cause insufficient_scope errors when users try to connect.

Manage Custom OAuth Clients

Each card shows the client name, access type, scope mode, and active status.

Select an inactive client card to activate it.
Select an active custom client card to deactivate it.
Click the settings icon to edit the client.
Open the client settings and click Delete OAuth client credentials to remove it.
Select Langdock client to use the managed client for new connections. This deactivates all custom clients.

You can keep several group clients active when their members do not overlap. Only one client for the entire workspace can be active for an integration.

Deactivating a client stops new connections from using it. Existing connections remain linked to their selected client. If you delete a client, existing access tokens can continue working until authentication fails. Users must then reauthorize with an eligible active client.

Common Configuration Errors

redirect_uri_mismatch

Cause: Redirect URL doesn’t match exactly between Langdock and your OAuth appSolution:

Copy the redirect URL from Langdock exactly
Check for trailing slashes or protocol mismatches
Verify you’re configuring the correct environment

invalid_client

Cause: Client ID or Client secret is incorrectSolution:

Double-check credentials from your OAuth app
Ensure no extra spaces or characters
Verify the client is enabled in your provider’s console

insufficient_scope

Cause: Missing required scopes in your OAuth appSolution:

Add all scopes shown in Langdock to your OAuth app
Users may need to reconnect after adding scopes
Verify scope names match exactly (case-sensitive)

A group client cannot be activated

Cause: At least one user belongs to a group covered by another active OAuth client.Solution:

Review the groups assigned to both clients
Remove the overlapping group assignment or membership
Activate the client again

Integrations Requiring Your Own OAuth Client

Some of our integrations can only be used when providing your own OAuth client. Details on how to connect them with Langdock are described in this section.

ServiceNow

Show how to configure a ServiceNow OAuth client

To enable this integration for your workspace, your ServiceNow system administrator must create an OAuth client, in the form of an application registry in ServiceNow, following this documentation.
Required authentication fields

Provide ServiceNow Subdomain

When a user wants to create a connection with ServiceNow, they have to provide the subdomain of your ServiceNow instance.

ServiceNow Integration Requirements

Are self-hosted or cloud-hosted accounts supported?

Only Cloud-hosted accounts are currently supported.

Is a paid ServiceNow plan required?

A paid ServiceNow account is required to create an application registry. View ServiceNow’s plans here.

Are any special account permissions / roles required?

Yes. To connect by OAuth, your systems administrator should set up the right configuration within your instance to connect any user using an OAuth connection. E.g. all users need the oauth_user role to be able to connect. Learn more about ServiceNow’s groups and permissions

Are there usage limits?

Yes. ServiceNow implements rate limiting to prevent excessive API usage. System administrators can configure rules that restrict the number of inbound REST API requests processed per hour. Learn more about ServiceNow’s usage limits.

Shopify Admin

Shopify Admin has no Langdock managed OAuth app. A workspace admin creates an app in the Shopify Dev Dashboard and pastes the Client ID and Client Secret into Langdock. Connections use application-level permissions: Langdock acts with the app’s Admin API scopes, not the personal Shopify role of the person who installed it.

Show how to configure a Shopify Admin OAuth client

Follow the full walkthrough in the Shopify Admin setup guide.Required authentication fields

Store domain (a custom domain, a *.myshopify.com domain, or the store handle)

Copy from Langdock into the Shopify app

Redirect URL from the Shopify Admin OAuth client dialog
Admin API scopes shown in that dialog (or the full list in the setup guide)

Copy from Shopify into Langdock

Client ID
Client secret

Snowflake

Configuring your own OAuth client for Snowflake gives you control over authentication policies, token validity periods, and IP allowlisting within your Snowflake environment.

Show how to configure a Snowflake OAuth client

Required Information:

OAuth Redirect URL: Copy this from Langdock’s Snowflake integration settings page
Client ID: Generated by Snowflake after creating the security integration
Client Secret: Generated by Snowflake after creating the security integration
Authorization URL: Your Snowflake account’s authorization endpoint

The Redirect URL from Langdock must be provided in Snowflake, while the Client ID, Client Secret, and Authorization URL from Snowflake must be entered into Langdock’s integration settings.

If your Snowflake account has network policies or IP allowlisting enabled, you may need to whitelist Langdock’s static IP address to allow connections. See Static IP Configuration for details.

Setup Guide

Create Integration in Langdock

In your Langdock workspace, create your new Snowflake integration, and set up a custom OAuth Client.

Show how to set up a custom OAuth client in Langdock

Navigate to Integrations in Langdock
Click “Add Integration” and select “Start from Scratch”
Fill in your preferred name and description for your new Snowflake integration
Click “Create”
Authentication Type: Select “OAuth 2.0” from the dropdown
Authentication fields: Leave blank
OAuth Configuration: Save your OAuth Redirect URL

Create Security Integration in Snowflake

In Snowflake, select your workspace, and create a new security integration.

Show how to create a new security integration in Snowflake

Create a new .sql file, and paste the following query:

CREATE SECURITY INTEGRATION <integration_name>
  TYPE = OAUTH
  ENABLED = TRUE
  OAUTH_CLIENT = CUSTOM
  OAUTH_CLIENT_TYPE = CONFIDENTIAL
  OAUTH_REDIRECT_URI = '<your_redirect_uri>'
  OAUTH_ISSUE_REFRESH_TOKENS = TRUE
  OAUTH_REFRESH_TOKEN_VALIDITY = 86400;

Replace <integration_name> with a descriptive name and <your_redirect_uri> with the OAuth Redirect URL from Step 1.
Run the query to create your new security integration in Snowflake. Note: Adjust your OAUTH_REFRESH_TOKEN_VALIDITY value based on your security policies.

Retrieve Client ID and Client Secret

Show how to retrieve your Client ID, and Secret from Snowflake

Within the same workspace, run the following query:

SELECT SYSTEM$SHOW_OAUTH_CLIENT_SECRETS('<integration_name>');

Replace <integration_name> with the name you gave your security integration in the previous step.
Save your Client ID and Client Secret. Store these credentials securely as they provide access to your Snowflake account.

Retrieve Account URL from Snowflake

Show how to retrieve your Account URL from Snowflake

Click on your account name in the bottom left corner of your Snowflake application
Under the Account Section, click on “View Account Details”
Copy your Account URL

Configure Integration Settings in Langdock

Show how to configure your Snowflake OAuth client in Langdock

Add your Client ID and Client Secret from Step 3 in the respective input fields of your new Langdock integration
In the following sections:
- Authorization URL
- Access Token URL
- Refresh Token URL
Replace only https://example.com with your Snowflake Account URL from Step 4.

Example:

https://example.com/oauth/authorize

Becomes:

https://<your-snowflake-account-url>/oauth/authorize

Click Save

Test the Connection

Show how to add a Connection to your Snowflake Integration

Click “Add Connection” in your Snowflake integration.

You should be directed to the Snowflake Authorization screen
Log into your Snowflake account

You have now successfully set up your own OAuth Snowflake integration!
