Creating Custom Integrations

Integrations vs. Actions

Integrations are standardized connections between Langdock and third-party tools that handle authentication and API communication. Within each integration, you can build actions that let assistants interact with specific API endpoints. Here’s how to create an integration and set up ready-to-use actions.

Setting up an Integation

In the integrations menu, click Build integration to get started.

Next, specify an integration name and upload an icon (shown in chat when using actions and in the integrations overview). Add a description to help assistants know when to use this integration. Hit Save to create it.

Authentication

Start with authentication in the Build tab. Select your authentication type and configure it following the steps below:

API Key

After selecting API Key authentication, add custom input fields in step 2 (like API key or client ID). These inputs are collected when users set up connections and can be marked as “required.”

Step 3 lets you set up a test API endpoint to validate authentication. Replace the URL parameter and add references to your input fields using data.auth.fieldId.

Use the built-in ld.request and ld.log functions for requests and logging.

Test your action and create your first connection.

OAuth 2.0

Custom integrations support OAuth 2.0 authentication.

Step 2 allows custom input fields (collected during connection setup). Client ID and Client Secret are entered in step 4, so this covers additional parameters only.

Create an OAuth client

Set up an OAuth client/App/Project in your target application and enable the required APIs. This is application-specific, which is why our interface supports custom code in step 5.

For Google Calendar, create a Google Service Account, generate a new key to get the client ID and secret, add them to Langdock in step 4, save the OAuth Redirect URL, and enable the Google Calendar API.

Change Authorization URL

Check the OAuth documentation for your service and extract the Authorization URL. Usually, changing the BASE_URL in our template is sufficient.

For Google Calendar:

return `https://accounts.google.com/o/oauth2/v2/auth?client_id=${env.CLIENT_ID}&response_type=code&scope=${data.input.scope}&access_type=offline&redirect_uri=${encodeURIComponent(data.input.redirectUrl)}&state=${data.input.state}&prompt=consent`;

Define Scopes

Define OAuth scopes required by your actions. List them comma or space-separated according to your API documentation.

For Google Calendar (space-separated):

https://www.googleapis.com/auth/calendar.events https://www.googleapis.com/auth/userinfo.email https://www.googleapis.com/auth/userinfo.profile

Provide Access Token & Refresh Token URL

Check your API’s OAuth docs for the Access Token URL and Refresh Token URL. Usually, updating the tokenUrl in our template works.

For Google Calendar:

const tokenUrl ='https://oauth2.googleapis.com/token';

Test Authentication Setup

Provide a test API endpoint (like /me) to verify authentication. The return value of that test request can be used inside the OAuth Client Label to influence the naming of the established connections. You can access the return value via: {{data.input}}

For Google Calendar: Google Sheets - {{data.input.useremail.value}}

Test by adding a connection and verifying the authorization flow works.

For Google Calendar, we test with:

url: 'https://people.googleapis.com/v1/people/me?personFields=names,emailAddresses'

Public APIs

Choose None for publicly available APIs without authentication.

Accessing input fields

Use data.input.{inputFieldId} for input field values and data.auth.{authenticationFieldId} for authentication field values from the user’s current connection.

Built-in functions for custom code sections

Use our Integration Assistant to help set up your integration functions.

Basic functions

The custom client library ld contains the core functionality needed for implementing authentication flows.

ld.request() creates a web request using the format specified by the passed object and returns the response. The parameters must be valid JSON objects since JSON.stringify() is called internally. For complex JSON objects, you’ll need to apply JSON.parse() first.

ld.log() outputs the passed values to the Logs field, which appears below the Test Action button after running an action.

Example usage from the Google Calendar integration:

const options = {
  method: 'GET',
  url: `https://www.googleapis.com/calendar/v3/calendars/${data.input.calendarId}/events/${data.input.eventId}`,
  headers: {
    'Authorization': 'Bearer ' + data.auth.access_token,
    'Accept': 'application/json',
  },
};

const response = await ld.request(options);

return response.json;

JSON

Both JSON.stringify() (converting a JavaScript JSON object into a string) and JSON.parse() (converting a string into a JavaScript JSON object) are available in custom code blocks.

The parameters passed to the ld.request() function must be valid JSON objects since JSON.stringify() is called internally. For complex JSON structures, you’ll need to apply JSON.parse() beforehand to ensure proper formatting.

Example usage from the HubSpot integration:

const properties = data.input.properties
  ? JSON.parse(data.input.properties)
  : {};

const options = {
  method: 'PATCH',
  url: `https://api.hubapi.com/crm/v3/objects/companies/${data.input.companyId}`,
  headers: {
    'Authorization': 'Bearer ' + data.auth.access_token,
    'Content-Type': 'application/json',
  },
  body: {
    properties: properties,
  },
};

Base 64

Since some OAuth clients require Base64-encoded client credentials for Basic authentication, we’ve built a helper function for this.

btoa() encodes a string to Base64, while atob() decodes a Base64 string back to plain text.

Example usage:

const auth = btoa(`${env.CLIENT_ID}:${env.CLIENT_SECRET}`);

Usability Recommendations

To make actions more usable within assistants, we recommend thinking about these aspects:

ID Handling

Most API calls require specific internal IDs. The challenge is that assistants can’t guess these IDs, which creates a poor user experience when calling actions like “get specific contact in HubSpot” or “add event to specific calendar in Google Calendar.”

The solution: Create helper actions that retrieve and return these IDs to the assistant first. For example, our Get deal context function for HubSpot uses GET endpoints to gather internal IDs for available pipelines and stages. This enables assistants to use actions like Create deal or Update deal much more effectively since they now have the required context.

Native Actions

Native actions allow you to natively search and download files that aren’t stored locally on a user’s device. We’ve already built native actions for SharePoint, OneDrive, Google Drive, and Confluence. You can access these via the Select files button to search and attach files directly to Chat or Assistant Knowledge.

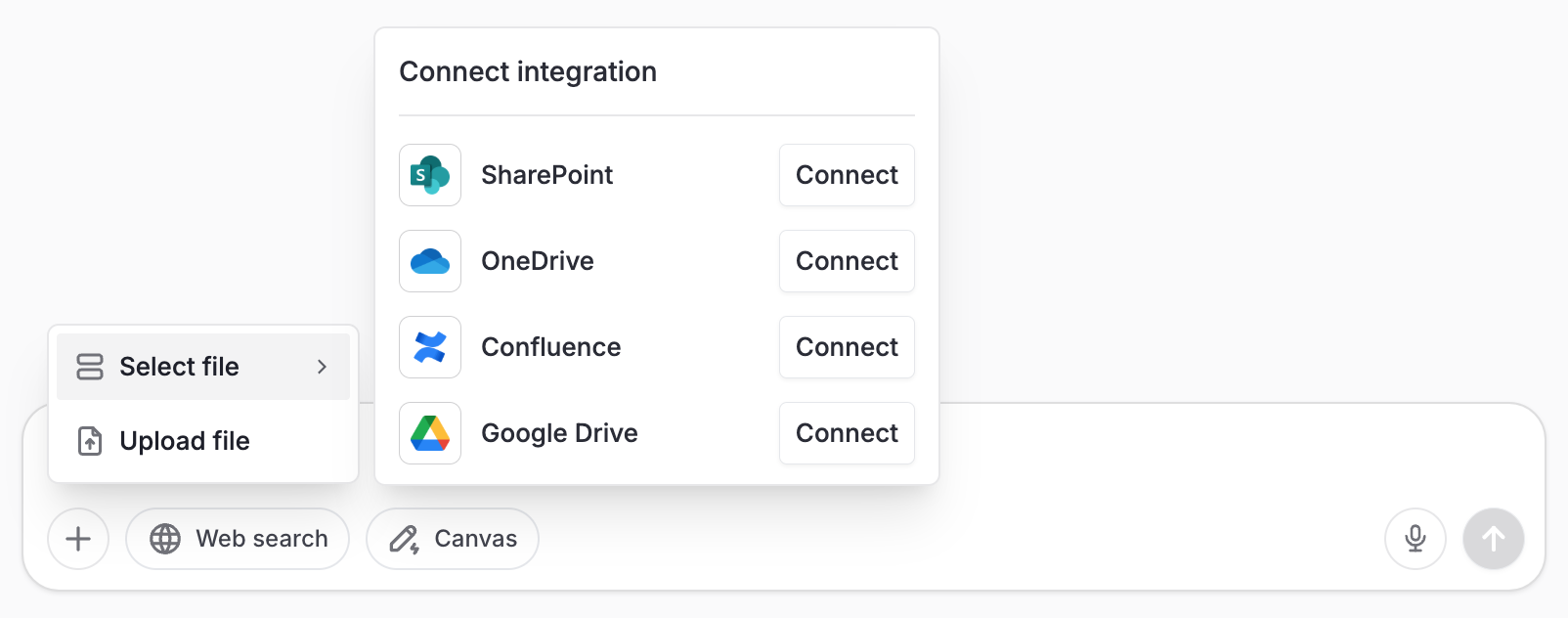

Attach files to the chat using native integrations.

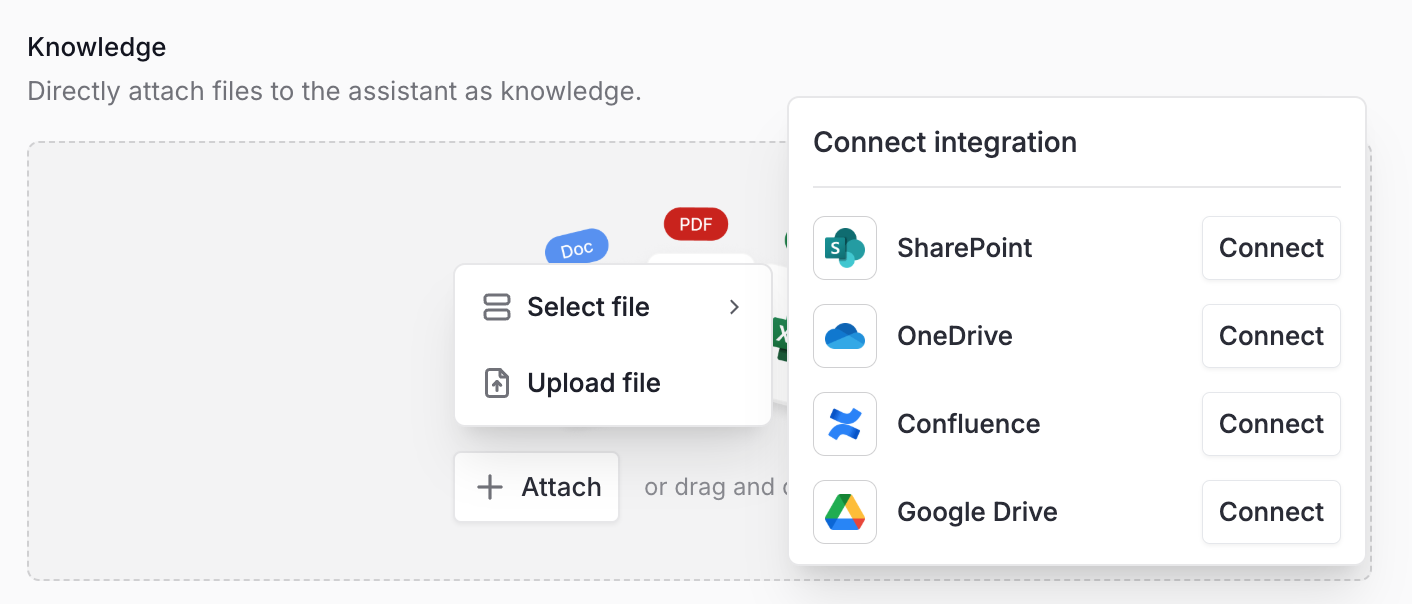

Attach files to the Assistant knowledge by using a native integration.

Building native actions for other tools enables you to search and download files from those platforms in the same way.

Setting up a Native Action

To set up a native action, begin building your integration as usual. Add another action, and in Step 1 under Advanced, select either “Search files” or “Download file” as the action type.

Afterwards, you build the action as any other action, but your function needs to return a specific object structure. This ensures compatibility and enables assistants to handle files and search results correctly.

Required Output Format

Depending on the action you select, your function must return a specific object structure. This ensures compatibility and enables assistants to handle files and search results correctly.

Search files: When building a native search integration, your function must return an array of objects matching the following schema:

{
  url: string,
  documentId: string,
  title: string,
  author?: {
    id: string,
    name: string,
    imgUrl?: string,
  },
  mimeType: string,
  lastSeenByUser: Date,
  createdDate: Date,
  lastModifiedByAnyone: Date,
  lastModifiedByUserId?: {
    id?: string,
    name?: string,
    lastModifiedByUserIdDate: Date,
  },
  parent?: {
    id: string,
    title?: string,
    url?: string,
    type?: string,
    driveId?: string,
    siteId?: string,
    listId?: string,
    listItemId?: string,
  }
}

The title and mimeType will be displayed in the UI for all search results.

Please also check out a detailed description for each parameter:

Show Parameter Descriptions

Required Fields

Field	Type	Description
url	string	The web URL where users can view or edit the file. This should be a direct link that opens the file in the source application (e.g., Google Docs editor, SharePoint viewer). Must be a valid HTTPS URL that the user can access with their credentials.
documentId	string	The unique identifier of the file in the source system. This ID is used internally to reference the file and should remain stable across searches. Can be any string format (UUID, numeric ID, etc.) as long as it uniquely identifies the file.
title	string	The display name of the file. This is what users will see in search results. Should include the file extension if relevant (e.g., “Report.pdf”, “Budget.xlsx”).
mimeType	string	The MIME type of the file. Used to determine the file type icon and category. Common values include: application/pdf, application/vnd.google-apps.document, application/vnd.openxmlformats-officedocument.wordprocessingml.document, text/plain, etc.

Optional Fields

Field	Type	Description
author	object	Information about who created the file. Helps users identify file ownership and origin.
author.id	string	Unique identifier of the author. Typically an email address or user ID in the source system.
author.name	string	Display name of the author. The human-readable name shown to users (e.g., “John Doe”).
lastSeenByUser	string	When the current user last viewed this file. ISO 8601 date string (e.g., “2024-01-15T10:30:00Z”). Used for “Recently viewed” sorting. Return null or omit if the user has never viewed the file.
createdDate	string	When the file was originally created. ISO 8601 date string. Helps users understand file age and sort by creation date.
lastModifiedByAnyone	string	When the file was last modified by any user. ISO 8601 date string. Critical for identifying recently updated content and collaborative work.
lastModifiedByUserId	object	Information about who last modified the file. Helps track recent changes in collaborative environments. Entire object should be omitted if any required sub-field is missing.
lastModifiedByUserId.id	string	Unique identifier of the last editor. Typically an email or user ID.
lastModifiedByUserId.name	string	Display name of the last editor. Human-readable name of who made the last changes.
lastModifiedByUserId.lastModifiedByUserIdDate	string	Timestamp of the last modification. ISO 8601 date string. Usually matches lastModifiedByAnyone.
parent	object	Information about the file’s location/container. Helps users understand file organization and navigate to parent folders.
parent.id	string	Unique identifier of the parent folder/container. Used for folder-based operations and navigation.
parent.title	string	Display name of the parent folder. Shown to help users understand file location (e.g., “Marketing Materials”, “Q1 Reports”).
parent.url	string	Web URL to view the parent folder. Direct link to open the folder in the source application.
parent.type	string	Type of parent container. Optional classifier (e.g., “folder”, “workspace”, “site”).
parent.driveId	string	Identifier of the drive/library containing the file. For services with multiple storage locations (e.g., SharePoint sites, Google Shared Drives).
parent.siteId	string	Identifier of the site containing the file. Specific to SharePoint and similar platforms with site-based organization.
parent.listId	string	Identifier of the list containing the file. For list-based storage systems.
parent.listItemId	string	Identifier of the list item associated with the file. For files attached to list items.
contentPreview	string	A text snippet from the file’s content. Provides context about file contents in search results. Should be plain text, typically 100-200 characters. Useful for showing relevant excerpts that match search queries. Set to null if content preview is not available.

Usage Guidelines

Dates:
All date fields must be valid ISO 8601 strings or omitted entirely. Invalid dates will cause parsing errors.

Null vs Omitted:

Use null for fields that are explicitly empty (e.g., no content preview available)
Omit fields entirely if the data is not applicable or unavailable

Parent Information: Include as much parent information as available to help users navigate file hierarchies

Author Information: Always include both id and name in author objects, or omit the entire object
Search Relevance: Fields like contentPreview can significantly improve search UX by showing why a file matched the query

Below you can find an example implementation for the native SharePoint Search files action.

Show SharePoint Example

const entityTypes = ["driveItem"];
const queryString = data.input.query;

try {
  // Perform search if query exists
  const searchRequest = {
    requests: [
      {
        entityTypes,
        query: { queryString },
        trimDuplicates: true,
        queryAlterationOptions: {
          enableModification: true,
          enableSuggestions: true,
        },
      },
    ],
  };

  const searchResult = await ld.request({
    method: 'POST',
    url: 'https://graph.microsoft.com/v1.0/search/query',
    body: searchRequest,
    headers: {
      'Authorization': `Bearer ${data.auth.access_token}`,
      'Content-Type': 'application/json',
    },
  });

  const hits = searchResult.json?.value?.[0]?.hitsContainers?.[0]?.hits;
  if (hits && hits.length > 0) {
    const results = hits.filter((hit) => hit.resource.name).map((hit) => {
      const { resource } = hit;
      return {
        url: encodeURI(`${resource.webUrl}?web=1`),
        documentId: resource.id,
        title: resource.name,
        mimeType: getMimeTypeFromFileName(resource.name),
        author: resource.createdBy?.user ? {
          id: resource.createdBy.user.email || '',
          name: resource.createdBy.user.displayName || '',
        } : undefined,
        createdDate: resource.createdDateTime,
        lastModifiedByAnyone: resource.lastModifiedDateTime,
        lastModifiedByUserId: resource.lastModifiedBy?.user ? {
          id: resource.lastModifiedBy.user.email || '',
          name: resource.lastModifiedBy.user.displayName || '',
          lastModifiedByUserIdDate: resource.lastModifiedDateTime,
        } : undefined,
        parent: resource.parentReference ? {
          id: resource.parentReference.id || '',
          title: resource.parentReference.path ? resource.parentReference.path.split('/').pop() : undefined,
          driveId: resource.parentReference.driveId || '',
        } : undefined,
      };
    });
    return results;
  }
  return [];
} catch (error) {
  ld.log(`Error: ${error.message}, Stack: ${error.stack}`);
  return [];
}

function getMimeTypeFromFileName(fileName) {
  const extension = fileName.split('.').pop().toLowerCase();
  const mimeTypes = {
    'txt': 'text/plain',
    'doc': 'application/msword',
    'docx': 'application/vnd.openxmlformats-officedocument.wordprocessingml.document',
    'pdf': 'application/pdf',
  };
  return mimeTypes[extension] || 'application/octet-stream';
}

Download file
For native download actions, return an object in the following format:

{
  data: response.data,
  fileName: string,
  mimeType: string,
  buffer: response.buffer, // Conditional
  url: string,
  lastModified: Date,
  text: string // Conditional
}

The fileName and mimeType will be displayed in the UI for all search results.

Please also check out a detailed description for each parameter:

Show Parameter Descriptions

Overview

Field	Type	Required	Description
fileName	string	Yes	The complete filename including extension. This is the name that will be used when saving the file. Should match the original filename from the source system (e.g., “Budget_2024.xlsx”, “Design_Final.pdf”). If the file doesn’t have an extension in the source, add the appropriate one based on mimeType.
mimeType	string	Yes	The MIME type identifying the file format. Determines how the file will be processed and what icon to display. Must be a valid MIME type (e.g., “application/pdf”, “image/png”, “text/plain”). For Google Workspace files, use the original MIME type, not the exported format’s type.
buffer	Buffer	Conditional	The binary content of the file as a Buffer. Required for binary files (PDFs, images, Office docs). The actual file data that will be saved. Can be provided as: native Buffer object, base64 encoded string, or object with format type:“Buffer”, data: [byte array].
url	string	Yes	The web URL to view/edit the file in its source application. Should be a direct link that opens the file when clicked (e.g., Google Drive viewer URL, SharePoint document URL). Used for users to access the original file and for reference tracking.
lastModified	string/Date	Yes	ISO 8601 timestamp of the file’s last modification. Indicates when the file content was last changed. Can be a Date object or ISO string like “2024-01-15T10:30:00Z”. Used for version tracking and determining file freshness.
data	any	No	Raw response data from the API call. Optional field that can include additional metadata from the source system. This is typically the raw JSON response and is used for debugging or accessing extra properties not mapped to other fields. Not processed by the system.
text	string	Conditional	The text content of the file as a UTF-8 string. Required for text-based files instead of buffer. Use for plain text, HTML, JSON, CSV, or any human-readable format. Should contain the complete file content. Cannot be used together with buffer.

Important Notes

Content Fields: You must provide either buffer OR text, never both:
Use buffer for: Images, PDFs, Office documents, videos, any binary format
Use text for: Plain text, HTML, source code, JSON, XML, any text format

Data Field: The data field is optional and typically contains the raw API response. It’s not used by the core system but can be helpful for:

Debugging integration issues
Preserving additional metadata
Passing through vendor-specific properties

MIME Type Accuracy: The mimeType must accurately reflect the content being returned:

For native Google Docs exported as HTML, still use “application/vnd.google-apps.document”
For converted files, use the original source MIME type, not the export format

File Naming: The fileName should:

Include the correct file extension
Match what users expect from the source system
Be sanitized to remove invalid filesystem characters

URL Requirements: The url must:

Be accessible with the user’s authentication
Open the file in the source application (not a download link)
Be a stable link that won’t expire quickly

Below you can find an example implementation for the native SharePoint Download file action.

Show SharePoint Example

async function downloadOneDriveFile() {
  try {
    // Construct the API path based on the input configuration
    const config = JSON.parse(data.input.parent);
    let apiPath = '';

    if (config.listId && config.listItemId) {
      apiPath = `/sites/${config.siteId}/lists/${config.listId}/items/${data.input.itemId}/driveItem`;
    } else if (config.driveId) {
      apiPath = `/drives/${config.driveId}/items/${data.input.itemId}`;
    } else if (config.groupId) {
      apiPath = `/groups/${config.groupId}/drive/items/${data.input.itemId}`;
    } else if (config.userId) {
      apiPath = `/users/${config.userId}/drive/items/${data.input.itemId}`;
    } else if (config.siteId) {
      apiPath = `/sites/${config.siteId}/drive/items/${data.input.itemId}`;
    } else {
      throw new Error('Insufficient information to construct API path');
    }

    // Make the request to get the file metadata including download URL
    const options = {
      method: 'GET',
      url: `https://graph.microsoft.com/v1.0${apiPath}`,
      headers: {
        'Authorization': 'Bearer ' + data.auth.access_token,
        'Accept': 'application/json',
      },
    };

    const response = await ld.request(options);

    if (response.json['@microsoft.graph.downloadUrl']) {
      const downloadUrl = response.json['@microsoft.graph.downloadUrl'];

      // Request to download the file content
      const contentOptions = {
        method: 'GET',
        url: downloadUrl,
        responseType: 'stream'
      };

      const contentResponse = await ld.request(contentOptions);

      if (contentResponse.status !== 200) {
        throw new Error(
          `Error fetching file content: ${JSON.stringify(contentResponse)}`
        );
      }

      return {
        fileName: response.json.name,
        mimeType: response.json.file.mimeType,
        buffer: contentResponse.buffer,
        url: response.json.webUrl,
        lastModified: response.json.lastModifiedDateTime,
      };
    } else {
      throw new Error('Could not download file!');
    }
  } catch (error) {
    ld.log('Error downloading item from OneDrive: ' + error.message);
    throw error;
  }
}

return downloadOneDriveFile();

Prompt Engineering

Guides

Other resources

Creating Custom Integrations

Integrations vs. Actions

Setting up an Integation

Authentication

API Key

OAuth 2.0

Public APIs

Accessing input fields

Built-in functions for custom code sections

Basic functions

JSON

Base 64

Usability Recommendations

ID Handling

Native Actions

Setting up a Native Action

Required Output Format

Required Fields

Optional Fields

Usage Guidelines

Overview

Important Notes

Prompt Engineering

Guides

Other resources

​Integrations vs. Actions

​Setting up an Integation

​Authentication

​API Key

​OAuth 2.0

​Public APIs

​Accessing input fields

​Built-in functions for custom code sections

​Basic functions

​JSON

​Base 64

​Usability Recommendations

​ID Handling

​Native Actions

​Setting up a Native Action

​Required Output Format

​Required Fields

​Optional Fields

​Usage Guidelines

​Overview

​Important Notes

Integrations vs. Actions

Setting up an Integation

Authentication

API Key

OAuth 2.0

Public APIs

Accessing input fields

Built-in functions for custom code sections

Basic functions

JSON

Base 64

Usability Recommendations

ID Handling

Native Actions

Setting up a Native Action

Required Output Format

Required Fields

Optional Fields

Usage Guidelines

Overview

Important Notes
